XGS65J1
by XCMG Canada
XGS65J1

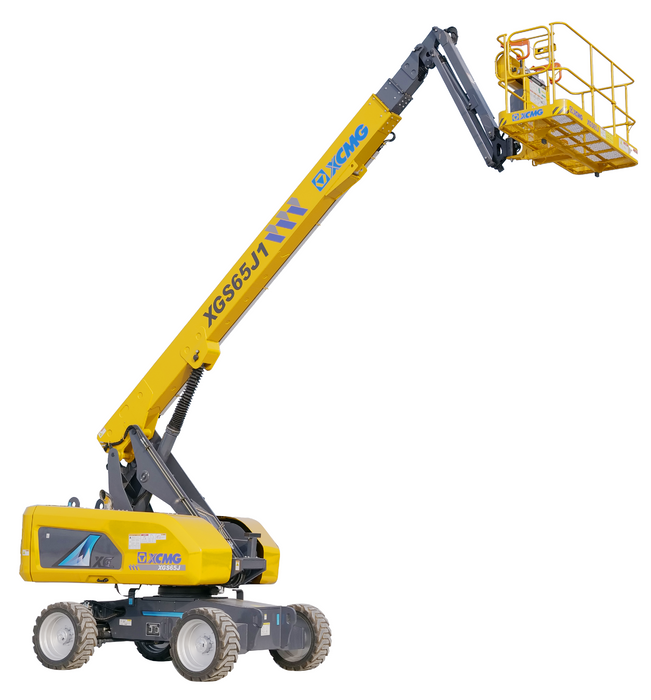

The XGS65J1 mobile elevated work platform is a heavy-duty machine. The dual parallel linkage and telescopic boom provide a strong center of gravity, making the vehicle very stable. With four-wheel drive, off-road wide tired and axle balance systems, the machine is excellent at navigating terrain. The multi-load envelope control technologies continuously monitor the loads, effectively making use of boom and allowing for a strong work performance. The machine is also very safe with the auto balance extending mechanisms that keep the machine stable.
| Item | Metric | Imperial | |
| Dimension | |||
| Overall dimension - stowed state | Length | 10080mm | 33ft 1in |
| Width | 2490mm | 8ft 2in | |
| Height | 2530mm | 8ft 4in | |
| Overall dimension - transportation | Length | 9850mm | 32ft 3in |
| Width | 2490mm | 8ft 2in | |
| Height | 3000mm | 9ft 10in | |
| Platform dimension | Length | 2440mm | 8ft |
| Width | 900mm | 2ft 11in | |
| Height | 1150mm | 3ft 9in | |
| Wheelbase | 2500mm | 8ft 2in | |
| Fly jib length | 1850mm | 6ft | |
| Min. ground clearance | 230mm | 0ft 9in | |
| Performance | |||
| Max. working height | 22m | 72ft 2in | |
| Max. platform height | 20m | 65ft 7in | |
| Max. working range | 17.2m | 56ft 5in | |
| Max. lift capacity | 300kg(unlimited)/460kg(limited) | 661lbs(unlimited)/1014lbs(limited) | |
| Max. number of occupants | 2/3 | 2/3 | |
| Max. working slope | X-5°/Y-5° | X-5°/Y-5° | |
| Telescopic boom luffing range | -3～+73° | -3～+73° | |
| Fly jib luffing range | -65～+70° | -65～+70° | |
| Turntable rotation | 360° | 360° | |
| Platform rotation | 160° | 160° | |
| Total weight | 13000kg | 28660lb | |
| Driving speed (stowed) | 6.3km/h | 3.9mph | |
| Driving speed (raised or extended) | 0.6km/h | 0.37mph | |
| Min. turning radius (inside/outside) | 3280mm/6000mm | 10ft 8in /19ft 8in | |
| Turntable tailswing (stowed) | 1310mm | 4ft 3in | |
| Max. gradeability | 45% (24°) | 45% (24°) | |
| Power source | |||
| Control | 12V DC proportional control | 12V DC proportional control | |
| Emergency power supply | 12V/220Ah | 12V/220Ah | |
| Engine model | Kubota V2403 | Kubota V2403 | |
| Engine-power/rpm | 36.8kW/(2700r/min) | 49.3hp (2700 r/min) | |
| Max. engine torque | 157.4N·m | 116.2ft ×lb | |
| Engine emission standard | Tier 4 | Tier 4 | |
| Hydraulic tank capacity | 120L | 31.7gal | |
| Fuel tank capacity | 150L | 39.63gal | |
| Tire | |||
| Tire size | 936mm×355mm | 3ft0in×1ft2in | |
| Tire ground pressure | 7kg/cm² | 100psi | |
| Driving wheels | 4 | 4 | |
| Braking wheels | 4 | 4 | |
| Steering wheels | 2 | 2 |
