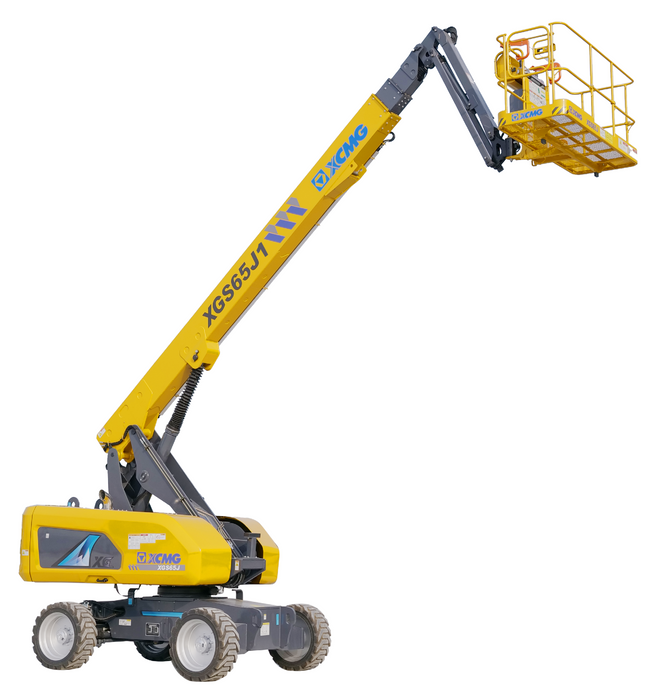

The XGS65J mobile elevated work platform is a heavy-duty machine. The dual parallel linkage and telescopic boom provide a strong center of gravity, making the vehicle very stable. With four-wheel drive, off-road wide tired and axle balance systems, the machine is excellent at navigating terrain. The multi-load envelope control technologies continuously monitor the loads, effectively making use of boom and allowing for a strong work performance. The machine is also very safe with the auto balance extending mechanisms that keep the machine stable.

Max. Working Height(ft)


Max. Platform Height(ft)


Max. Working Range(ft)


Parameters Unit of Measure Measurement
Max. Load Capacity(Unrestricted/Restricted) lbs 661 (unrestricted) / 1014 (restricted)
Boom Luffing Range degrees -3 ~ 73
Rotation Angle of Turntable degrees 360
Max. Travel Speed (lowered/elevated) mph 3.9
Max. Travel Speed (lowered/elevated) ft 19'8"
Max. Grade Ability % 45
Tire Specification 36x12-14 355/55D625
Engine Model Kubota V2403-CR-EW02
Rated Power of Engine(kW/(r/min)) hp 49
Total Weight lb 24,469
Platform Size
Overall Length ft 33'1"
ft 8'2"
Overall Height ft 8'1"
Wheel Base ft 8'2"
