XGA45ACJ
by XCMG Canada
XGA45ACJ

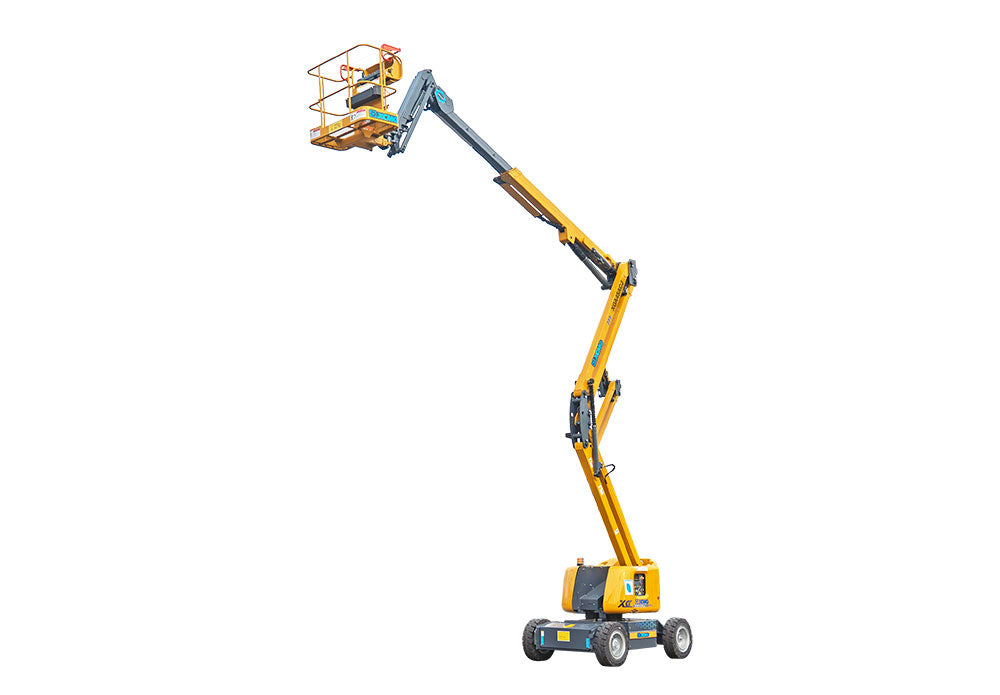

Articulated Mobile Elevating Work Platform is designed to satisfy the requirements of MEWP. This machine arranges intelligent control system and the humanized layout, lubrication-free design and easy operation and maintenance, which provide the multiple options and great safety.
Max. Working Height(ft)
51'10"
Max. Platform Height(ft)
45'3"
| Parameters | Unit of Measure | Measurement |
|---|---|---|
| General | ||
| Rotation Angle of Turntable | Degrees | 355 |
| Max. Travel Speed (lowered/elevated) | mph | 3.23 *overall |
| Min. Turning Radius(Inner wheel/Outer wheel) | ft | 10'10" * external |
| Min. Ground Clearance | ft | 8 |
| Max. Grade Ability | % | 30 |
| Tire Specification | 250-15 solid tire | |
| Engine Model | ||
| Total Weight | lb | 15,212 |
| Platform Size | ||
| Overall Length | ft | 21'8" |
| Overall Width | ft | 5'9" |
| Overall Height | ft | 6'7" |
| Wheel Base | ft | 6'7" |
