XG5390RT

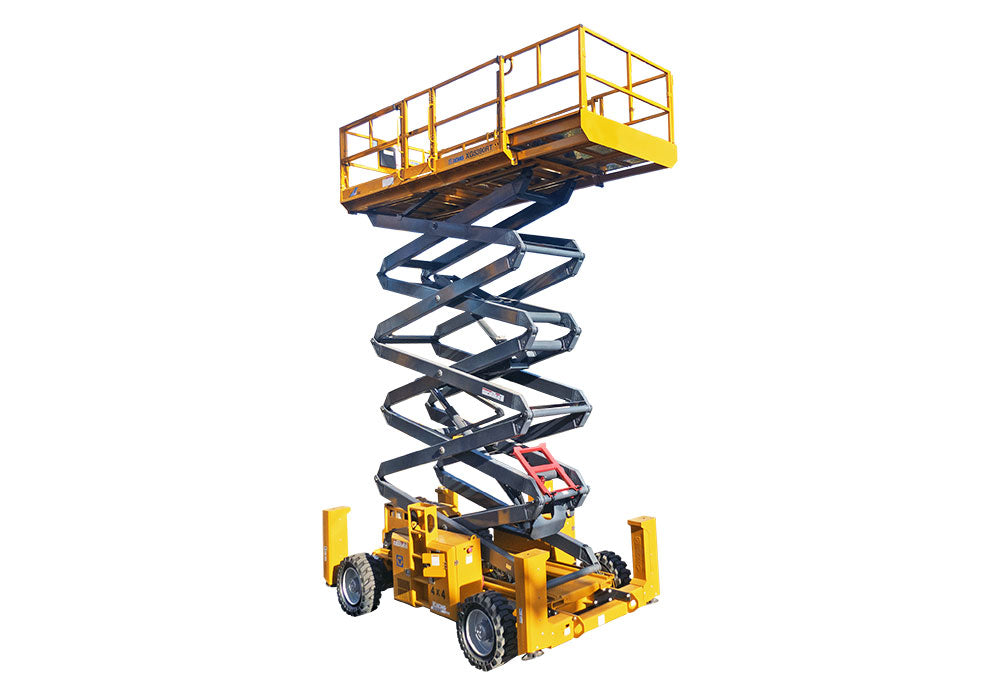

The XG5390RT mobile elevated working platform is equipped with four-wheel drive, multiple disc brakes, manual brake release, and complies with ANSI/CSA standards. It also features platform control, manual platform lowering valve, both platform and ground control emergency stop activation, mobile pothole protection, a tilt alarm, an hour meter, lift and lower alarm, a horn, dual flashing beacons, a motion alarm, and a load warning system.
Max. Working Height(ft)
59'5"
Max. Platform Height(ft)
52'10"
| Parameters | Unit of Measure | Measurement |
|---|---|---|
| General | ||
| Max. Travel Speed (lowered/elevated) | mph | 3.8 |
| Min. Turning Radius(Inner wheel/Outer wheel) | ft | 8'2"/18'4" |
| Min. Ground Clearance | in | 10 |
| Max. Grade Ability | % | 40 |
| Tire Specification | Rough Terrain Solid Tire / 33x12-20 | |
| Engine Model | V2403-M-DI | |
| Rated Power of Engine(kW/（r/min）) | hp | 48 |
| Total Weight | lb | 17,637 |
| Platform Size | ||
| Overall Length | ft | 15'11" |
| Overall Width | ft | 7'6" |
| Overall Height | ft | 10'5" |
| Wheel Base | ft | 9'4" |
