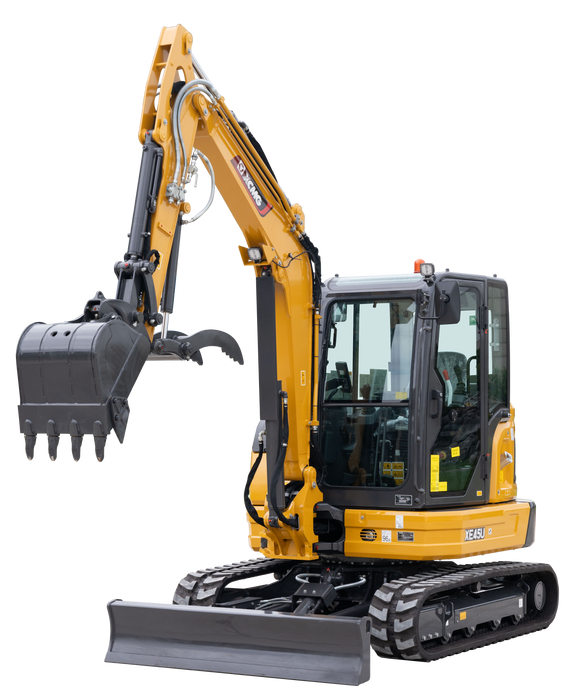

XE45U Mini Excavator
XE45U
Compact. Capable. Built for Precision in Tight Spaces.
The XE45U is a 4.8-ton compact excavator engineered for versatility, efficiency, and stability in confined job sites. Powered by a 39.8 hp Tier 4 Final Kubota engine, this short tail swing machine is ideal for urban construction, landscaping, municipal work, and utility applications where space and precision matter.
Designed with a large-angle swing boom, load-sensing hydraulics, and two standard auxiliary hydraulic circuits, the XE45U easily supports a wide range of attachments. Its floating angle blade, robust undercarriage, and optional counterweight provide excellent stability and control during grading, lifting, and trenching operations.
Inside the cab, operators benefit from a 7-inch touchscreen display, ergonomic controls, and excellent visibility delivering comfort, confidence, and productivity throughout the workday.
Key Technical Specifications
-
Operating Weight: 4,800 kg (10,582 lbs)
-
Engine: Kubota D1803 Tier 4 Final – 29.7 kW (39.8 hp)
-
Bucket Capacity: 0.11 m³ (0.14 yd³)
-
Max Digging Depth: 3,342 mm (10'11")
-
Max Reach at Ground Level: 5,585 mm (18'4")
-
Max Dump Height: 4,052 mm (13'4")
-
Travel Speed: 2.6 – 5.0 km/h (1.6 – 3.1 mph)
-
Swing Speed: 9.5 rpm
-
Gradeability: 70% (35°)
-
Hydraulic Flow: 132 L/min
-
Ground Pressure: 34 kPa
