XC918U
XC918U

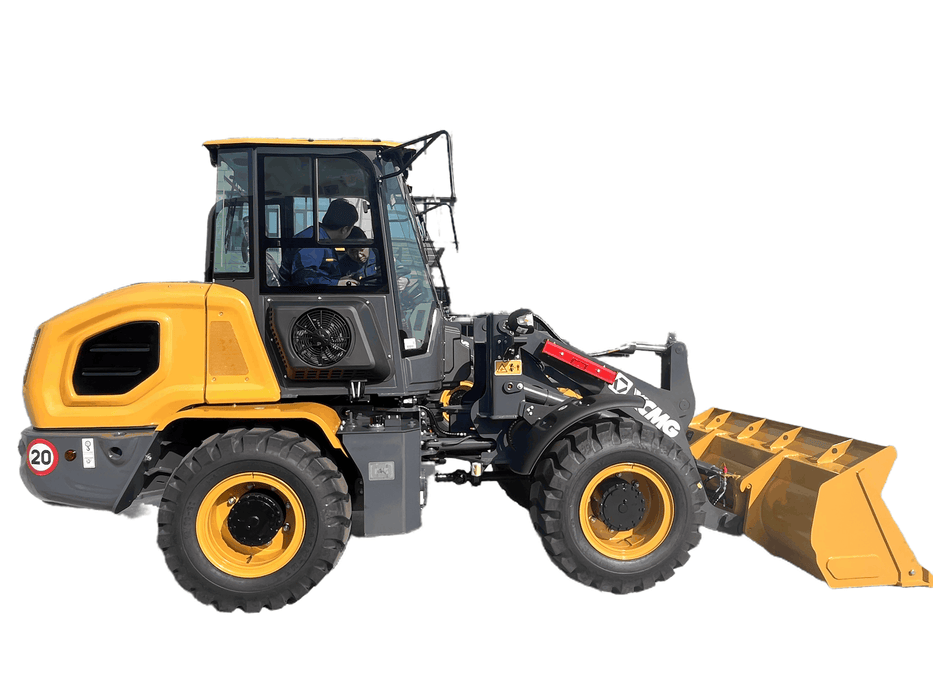

The XC918U Compact Wheel Loader from XCMG is a versatile and high-performance machine designed for efficiency in municipal construction, agriculture, forestry, and livestock operations. With a rated load of 1,800 kg (3,968 lbs) and powered by a Yanmar 4TNV98CT engine (53.7 kW / 72 hp) , this loader delivers strong power and fuel economy while meeting EU Stage V / Tier 4F emission standards .
Built with a hydrostatic transmission system , the XC918U ensures smooth operation and real-time motor control, allowing operators to switch between high and low speeds effortlessly. The Z-bar work equipment structure enhances lifting and digging capabilities, making it ideal for heavy-duty applications.
Key Features
- Hydrostatic Transmission: Offers precise speed control and energy-saving performance.
- Comfortable & Safe Operation:
- ROPS/FOPS-certified panoramic cab with air-suspension seat (optional)
- Adjustable steering column and joystick controls
- Integrated instrument panel with real-time diagnostics
- Maneuverability & Flexibility:
- Articulated steering (±38°)
- Short-tail design for reduced turning radius
- Center oscillation structure (9°) for stability on uneven terrain
- Versatile Attachments: Compatible with a wide range of tools including buckets, forks, snowplows, breakers, and more — thanks to the standard third-function quick coupler .
- Durable Construction:
- Reinforced frame and drive axle for durability
- CAE simulation-tested components for enhanced strength and safety
Technical Highlights
- Operating Weight: 6,300 kg (13,889 lbs)
- Bucket Capacity: 1.0 m³ (1.3 yd³)
- Engine Power: 53.7 kW / 72 hp (Yanmar 4TNV98CT)
- Maximum Breakout Force: 58 kN (13,039 lbs)
- Travel Speeds:
- 1st Gear: 9 km/h (5.6 mph)
- 2nd Gear: 20 km/h (12.4 mph)
- Lifting Time (Full Cycle): ≤11 seconds
- Fuel Tank Capacity: 80 L (21.1 gal)
- Hydraulic System Pressure: 24 MPa
- Ground Clearance: 370 mm (1.2 ft)
- Turning Radius (over bucket): 4,602 mm (15.1 ft)
Whether you're working on landscaping, material handling, or agricultural tasks, the XC918U Compact Wheel Loader combines agility, comfort, and strength to deliver outstanding performance across diverse job sites.
