RP705
RP705

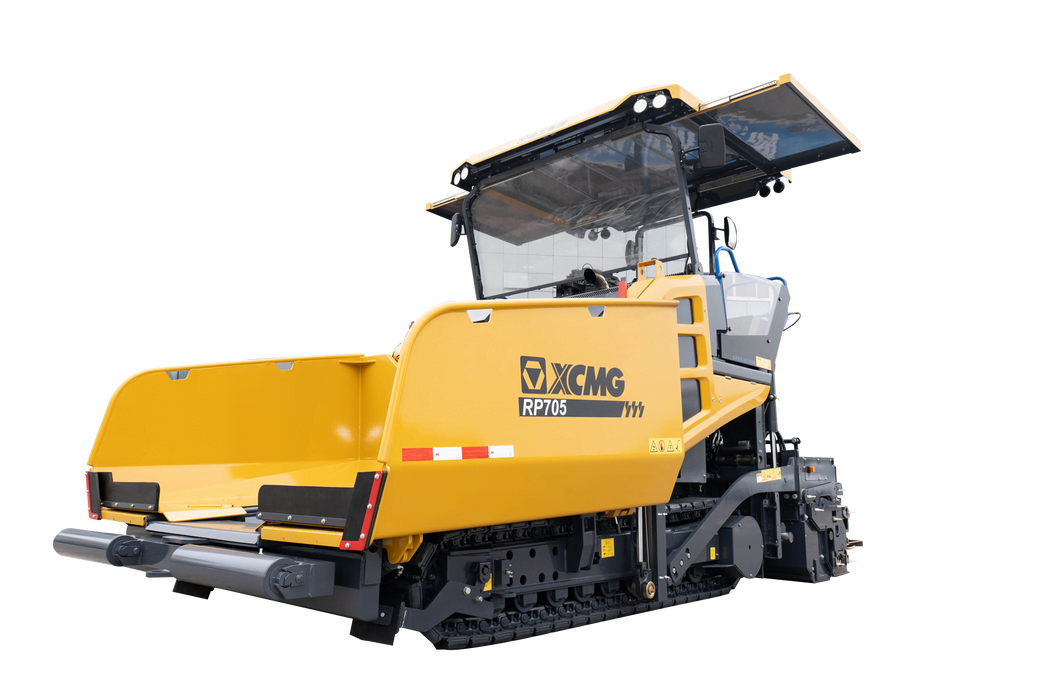

RP705 paver is a construction machine mainly used for the paving of surface material on various classified highways. It adopts advanced technologies, such as full hydraulic drive, microcomputer control, left and right independent drive, material level sensing control, electronic automatic leveling, vibratory compaction, variable-frequency electric heating, etc. It has the advantages of good paving stability, uniform material supply, high precompaction density, good leveling, comfortable operation, convenient maintenance, energy conservation and environmental protection.
|
Item |
Unit |
Parameter |
|
Basic paving width |
mm |
2500～5000 |
|
Max. paving width (Options) |
mm |
6000～7500 |
|
Max. pave thickness |
mm |
300 |
|
Max. paving speed |
m/min |
24 |
|
Max. drive speed |
km/h |
4 |
|
Maximum theoretical productivity |
t/h |
600 |
|
Max. gradeability |
% |
20 |
|
Manufacturer |
- |
Cummins |
|
Model |
- |
QSB4.5 |
|
Emission |
- |
EC Stage Ⅲ |
|
Fuel |
- |
Diesel |
|
Rated power |
kW |
119 |
|
Rated speed |
rpm |
2200 |
|
Grounding length |
mm |
2700 |
|
Track width |
mm |
300 |
|
Hopper capacity |
t |
13 |
|
Scraper numbers |
- |
2 |
|
Scraper speed(maximum) |
m/min |
21 |
|
Speed(maximum) |
rpm |
95 |
|
Diameter |
mm |
360 |
|
Battery voltage |
V |
24 |
|
Tractor weight |
t |
14 |
|
Operating weight |
t |
17.5 |
|
Total weight |
t |
19 |
|
Sound pressure level LPA at the operator ears |
dB(A) |
84 |
|
Emitted sound level |
dB(A) |
105 |
